Understanding Different Types of Loudspeaker Drivers

Published by IWISTAO

When purchasing speakers, you may encounter descriptions in the manual such as “diamond tweeter,” “silk diaphragm,” or “paper cone.” Many people unfamiliar with audio equipment may not understand these terms. In fact, they refer to the materials used in the speaker unit—commonly known as the loudspeaker driver.

We all know that sound is produced by the vibration of the loudspeaker diaphragm, and different diaphragm materials create different sonic characteristics. This is easy to imagine: shaking a sheet of paper and a piece of plastic produces very different sounds. Over the years, engineers have experimented with countless natural and synthetic materials to achieve the most accurate and pleasing sound reproduction.

Today, loudspeaker technology is highly mature, and after decades of experimentation, a few materials have become industry standards. Among the most common are silk and paper, though many other advanced materials are also used. Before exploring these materials in detail, let’s first look at how loudspeakers are classified.

Loudspeakers are essential components in any audio system, responsible for converting electrical signals into audible sound waves. The performance of a loudspeaker largely depends on its driver design and construction. This article explores the most common types of loudspeaker drivers, their working principles, technical characteristics, and applications.



Cross-sectional view of a loudspeaker driver showing magnetic structure and diaphragm

1. Cone Drivers

Working Principle

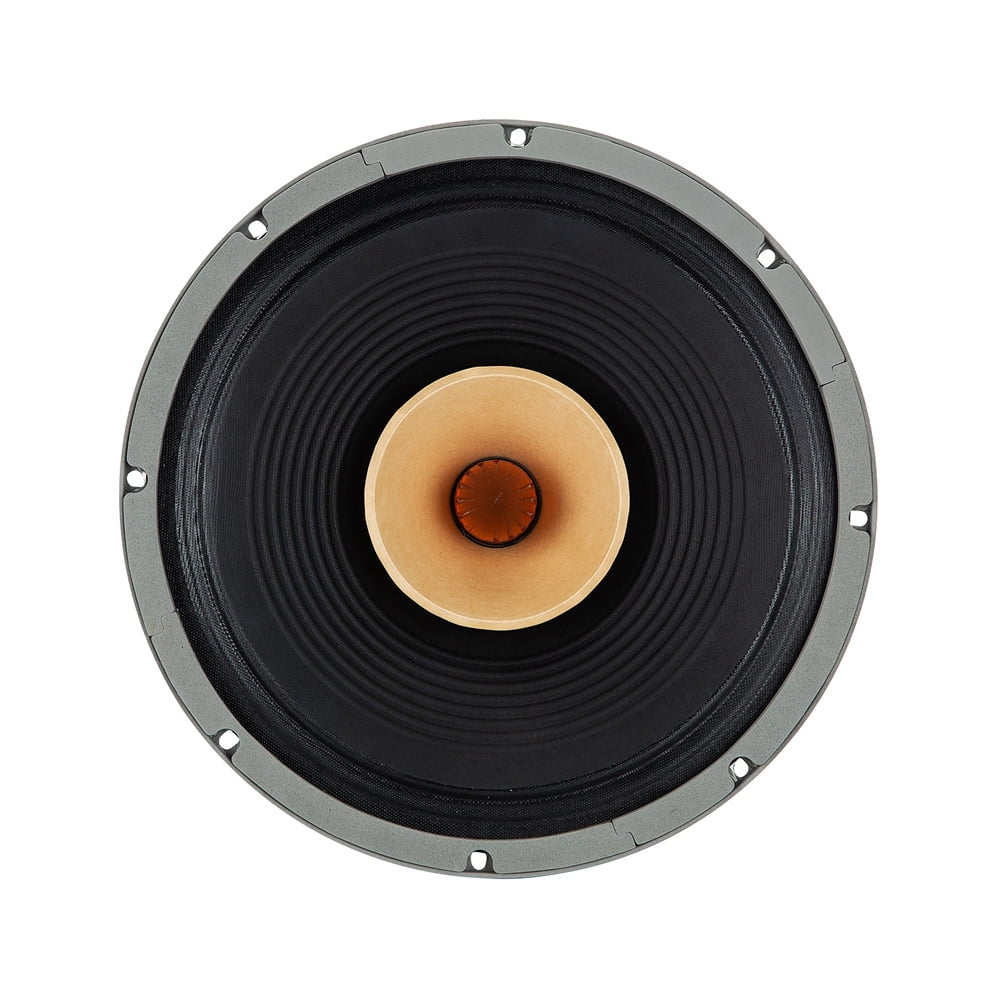

Cone drivers, also known as dynamic drivers, are the most common type of loudspeaker driver. They operate on the electromagnetic principle where an electrical current passing through a voice coil creates a magnetic field that interacts with a permanent magnet, causing the attached cone-shaped diaphragm to vibrate and produce sound.

Technical Characteristics

• Diaphragm Materials: Paper pulp (often mixed with wool, silk, or carbon fiber), polypropylene, ceramic, mica, carbon fiber, aramid fibers, aluminum, and glass fiber
• Frequency Range: Typically 15Hz-5kHz for woofers, 500Hz-7.5kHz for midrange drivers, 2.5 – 25 kHz for tweeters, and covers all frequencies above for full range units
• Impedance: Usually 4Ω, 6Ω, or 8Ω
• Power Handling: Ranges from a few watts to several hundred watts
• Efficiency: Generally higher than other driver types, typically 85-95dB/W/m



Sound Characteristics

Paper cone drivers offer natural, balanced sound with good transient response and detail retrieval. Polypropylene cones provide improved bass response and durability, while metal cones deliver higher rigidity and extended high-frequency response but may introduce metallic resonance. Carbon fiber and Kevlar cones offer an excellent balance of rigidity, light weight, and damping properties.

Applications

• Woofers: Bass reproduction in home and professional audio systems
• Midrange Drivers: Vocal and instrument reproduction in three-way speaker systems
• Full-range Drivers: Compact audio systems, portable speakers, and guitar amplifiers
• Subwoofers: Low-frequency reproduction in home theater and sound reinforcement systems

2. Dome Tweeters

Working Principle

Dome tweeters operate on the same electromagnetic principle as cone drivers but feature a hemispherical dome-shaped diaphragm instead of a cone. This design allows for improved high-frequency dispersion and response.

Types of Dome Tweeters

• Soft Dome: Fabric diaphragms (silk, polyester, textile blends) for smooth, natural highs
• Hard Dome: Metal or ceramic diaphragms (aluminum, titanium, beryllium, diamond) for extended high-frequency response
• Inverted Dome: Dome is inverted to improve dispersion and reduce distortion

Technical Specifications

Parameter	Soft Dome	Hard Dome
Frequency Range	2kHz-20kHz	1.5kHz-40kHz
Sensitivity	85-92dB/W/m	88-96dB/W/m
Impedance	4-8Ω	4-8Ω
Power Handling	10-50W	20-100W
Distortion	0.5-1% @ 1kHz	0.3-0.8% @ 1kHz

Sound Characteristics

Soft dome tweeters deliver smooth, natural, and extended high frequencies with excellent transient response, making them ideal for classical music and vocals. Hard dome tweeters offer higher rigidity, faster response, and extended frequency response, providing greater detail and airiness, suitable for rock, electronic, and movie soundtracks.

Applications

• Home stereo systems
• Home theater systems
• Studio monitors
• Automotive audio systems
• Portable speakers



3. Planar Magnetic Drivers

Working Principle

Planar magnetic drivers use a thin, flat diaphragm with an embedded conductive trace suspended between two sets of permanent magnets. When an audio signal is applied to the conductive trace, the varying magnetic field interacts with the permanent magnets, causing the diaphragm to vibrate uniformly across its surface.

Technical Characteristics

• Diaphragm Materials: Polyimide film with aluminum or copper conductors
• Frequency Range: Typically 40Hz-40kHz
• Impedance: Usually 4Ω, 6Ω, or 8Ω
• Power Handling: Generally 20-200W
• Efficiency: Typically 85-92dB/W/m
• Distortion: Very low, often less than 0.5% at rated power

Sound Characteristics

Planar magnetic drivers offer exceptional clarity, detail, and transient response due to their uniform diaphragm motion. They typically provide extended frequency response with well-controlled bass and smooth, natural highs. The large radiating area contributes to a spacious soundstage and accurate imaging.

Applications

• High-end headphones
• Premium home audio speakers
• Studio monitors
• Soundbars and home theater systems

4. Ribbon Drivers

Working Principle

Ribbon drivers feature an extremely thin, lightweight aluminum or metalized plastic ribbon suspended in a strong magnetic field. The audio signal passes directly through the ribbon, which vibrates in the magnetic field to produce sound waves. This design eliminates the need for a separate voice coil and cone assembly.

Technical Characteristics

• Ribbon Materials: Aluminum, Kapton with aluminum coating, or composite materials
• Frequency Range: Typically 2kHz-40kHz for tweeters, some full-range designs cover 200Hz-40kHz
• Impedance: Often very low (1-2Ω), requiring impedance-matching transformers
• Power Handling: Generally 10-100W
• Efficiency: Varies widely, from 85-95dB/W/m

Sound Characteristics

Ribbon tweeters are renowned for their exceptional transient response, extended high-frequency response, and low distortion. They deliver fast, detailed, and airy highs with excellent dispersion characteristics. Due to their large radiating area relative to dome tweeters, they produce a more natural, spacious sound with better integration with midrange drivers.

Applications

• High-end home audio systems
• Professional studio monitors
• High-end headphones
• Line array speakers for sound reinforcement

5. Electrostatic Drivers

Working Principle

Electrostatic drivers use a thin, charged diaphragm suspended between two stationary metal grids (stators). An audio signal applied to the stators creates an electric field that attracts and repels the charged diaphragm, causing it to vibrate and produce sound. Electrostatic speakers typically require a high-voltage power supply (500-1000V) to charge the diaphragm.

Technical Characteristics

• Diaphragm Materials: Mylar or polyester film with conductive coating
• Frequency Range: Typically 50Hz-40kHz
• Impedance: Very high, requiring a step-up transformer
• Power Handling: Generally limited to 50-100W
• Efficiency: Typically lower than dynamic drivers, 80-90dB/W/m

Sound Characteristics

Electrostatic drivers offer exceptional clarity, detail, and transient response with extremely low distortion. They produce a fast, transparent sound with excellent imaging and a wide, even dispersion pattern. However, they typically have limited bass response and require careful placement in a room to perform optimally.

Applications

• High-end audiophile speakers
• Premium headphones
• Studio reference monitors

6. Horn Drivers

Working Principle

Horn-loaded drivers combine a compression driver with a flared horn waveguide. The compression driver features a small diaphragm that compresses air into the throat of the horn, which then expands the sound waves to increase efficiency and control dispersion. This design allows for high sound pressure levels with relatively low power input.

Technical Characteristics

• Diaphragm Materials: Titanium, aluminum, beryllium, or phenolic resin
• Frequency Range: 500Hz-20kHz for high-frequency horns, 50Hz-5kHz for midrange horns
• Impedance: Usually 8Ω or 16Ω
• Power Handling: Typically 25-500W
• Efficiency: Very high, often 95-110dB/W/m
• Dispersion: Controlled directivity, typically 60°-120° horizontal coverage

Sound Characteristics

Horn drivers offer high efficiency and high sound pressure levels with good dynamic range. They provide excellent projection and coverage control, making them ideal for large venues. Modern horn designs have minimized the coloration associated with older horn speakers, delivering more natural sound with extended frequency response.

Applications

• Live sound reinforcement systems
• Public address systems
• Home theater systems (especially for center channels)
• Studio monitors (nearfield and midfield)
• Outdoor concert systems

7. Heil Air Motion Transformer (AMT)

Working Principle

Developed by Oskar Heil in 1973, the Air Motion Transformer uses a folded diaphragm suspended in a magnetic field. When an audio signal is applied, the folds of the diaphragm move in a pistonic motion, pushing air through the folds to create sound waves. This design provides a large radiating area in a compact form factor.

Technical Characteristics

• Diaphragm Materials: Polyimide film with aluminum conductors
• Frequency Range: Typically 1kHz-40kHz
• Impedance: Usually 4Ω or 8Ω
• Power Handling: Generally 15-50W
• Efficiency: Typically 88-95dB/W/m

Sound Characteristics

AMT drivers combine the advantages of ribbon and electrostatic technologies, delivering fast transient response, extended high-frequency response, and excellent dispersion. They provide detailed, airy highs with good dynamic range and low distortion. The folded design allows for a larger radiating area than conventional dome tweeters, resulting in better integration with midrange drivers.

Applications

• High-end home audio speakers
• Premium soundbars
• Studio monitors
• Automotive audio systems

Comparison of Driver Technologies

Driver Type	Frequency Range	Efficiency (dB/W/m)	Distortion	Power Handling	Cost
Cone	15Hz-25kHz	85-95	Moderate	High	Low to Moderate
Dome Tweeter	2kHz-25kHz	85-95	Low	Moderate	Low to High
Planar Magnetic	40Hz-40kHz	85-92	Very Low	Moderate	Moderate to High
Ribbon	2kHz-40kHz	85-95	Very Low	Moderate	High
Electrostatic	50Hz-40kHz	80-90	Very Low	Low	Very High
Horn	500Hz-20kHz	95-110	Moderate to Low	High	Moderate to High
AMT	1kHz-40kHz	88-95	Very Low	Moderate	High

Conclusion

Each type of loudspeaker driver offers unique advantages and characteristics, making them suitable for different applications and sonic preferences. Cone drivers provide a good balance of performance, efficiency, and cost for general-purpose use. Dome tweeters deliver excellent high-frequency response in a compact design. Planar magnetic and ribbon drivers offer exceptional clarity and detail for high-end audio systems. Electrostatic drivers provide the ultimate in transparency and detail but at a higher cost and with power limitations. Horn drivers excel in efficiency and sound projection for large venues. AMT drivers offer a compelling combination of performance attributes from various technologies.

The choice of driver technology depends on factors such as application, budget, sonic preferences, and system design goals. Many high-performance speaker systems combine different driver types to leverage the strengths of each technology across the audio spectrum.

References

• COMSOL Multiphysics: Loudspeaker Driver Model
• DIY Audio: Loudspeaker Driver Fundamentals
• Visaton Speaker Drivers
• Bowers & Wilkins Loudspeakers
• Dynaudio Loudspeakers



Beyond the Music: Unlocking Sonic Purity with Linear Power Supplies

Published by IWISTAO

Table of Contents

• What is a Linear Power Supply, and Why Should You Care?
• The Enemy Within: How "Dirty" Power Corrupts Your Sound
• The Linear Solution: A Deep Dive into Sonic Purity
  • The Anatomy of Silence
  • The Tangible Difference: What You'll Actually Hear
• The Great Debate: Is an LPS Always the Answer?
  • The Case for High-End SMPS
  • When is an LPS a "Must-Have"?
• Conclusion: Powering Your Passion

You’ve done it. You’ve assembled your dream Hi-Fi system. The speakers are perfectly positioned, the amplifier has been meticulously chosen, and the DAC is a marvel of modern engineering. Yet, as you lean back for a critical listening session, something feels… off. A subtle haze veils the music, the soundstage isn't quite as deep as the reviews promised, and a faint, almost imperceptible digital edge lingers. You’ve chased down every cable and tweaked every setting, but the final piece of the puzzle remains elusive.

The truth is, the most overlooked component in your entire audio chain might be the very thing that gives it life: its power supply.

Most high-quality audio components don't come with a standard plug; they rely on an external power adapter to convert the chaotic AC power from your wall into the stable DC voltage they need. The vast majority of these are cheap, mass-produced "wall-wart" style Switching Mode Power Supplies (SMPS). While efficient and inexpensive, they are also inherently noisy, injecting a stream of high-frequency interference directly into the heart of your sensitive audio gear. This is where the silent hero of the audiophile world enters the scene: the Linear Power Supply (LPS).

What is a Linear Power Supply, and Why Should You Care?

At its core, any power supply's job is to convert the alternating current (AC) from your wall outlet into the clean, stable direct current (DC) that electronics crave. Think of it as a translator between two different languages. The common SMPS is like a hyper-efficient speed-reader, rapidly switching on and off thousands of times per second to get the job done. It's fast and saves energy, but this high-frequency process creates a significant amount of electrical noise, known as Electromagnetic Interference (EMI). This is the "dirty" power that can wreak havoc on audio signals.

A Linear Power Supply, in contrast, is the old-world artisan. It uses a large, heavy transformer to step down the voltage, a rectifier to convert it to DC, and a bank of capacitors to smooth it out. The process is simple, brute-force, and highly inefficient—much of the excess energy is burned off as heat. But the result is an incredibly clean, stable, and virtually noise-free stream of power. As Tektronix notes, an LPS is known for delivering "exceptionally clean, stable voltage with ultra-low output noise," making it the preferred choice for sensitive applications.

The Enemy Within: How "Dirty" Power Corrupts Your Sound

So, what does this electrical "noise" actually do to your music? Imagine trying to appreciate a delicate watercolor painting under a flickering strobe light. The details get lost, the colors appear distorted, and the entire experience is jarring. Electrical noise has a similar effect on your audio signal.

The high-frequency ripple and EMI generated by an SMPS can leak into sensitive audio circuits, such as a DAC's clock or an amplifier's gain stage. This interference manifests in several ways:

• A Raised Noise Floor: The "black background" that audiophiles cherish becomes a hazy grey. Subtle details, like the decay of a cymbal or the breath of a vocalist, are swallowed by the noise.
• Compressed Dynamics: The power supply struggles to deliver current quickly enough for sudden musical peaks, leading to a flattened, less impactful sound. Drum hits lose their snap, and crescendos feel restrained.
• Digital Glare: In digital components, power supply noise can increase jitter (timing errors), resulting in a harsh, brittle, and fatiguing treble.

In one case study, an audiophile who switched from an SMPS to an LPS for their high-end DAC saw the signal-to-noise ratio improve by 12dB, with a significant drop in background noise—a testament to the real-world impact of clean power, as documented in a 2025 guide by YHY Power.

The Linear Solution: A Deep Dive into Sonic Purity

An LPS combats this noise pollution through its fundamental design. It’s not about adding complex filters to clean up a messy signal; it’s about providing a clean signal from the very beginning.

The Anatomy of Silence

The magic of an LPS lies in its simple yet robust components. A typical high-quality unit consists of three key stages:

1. The Transformer: Usually a large toroidal or EI-core transformer, this heavy chunk of copper and iron provides the initial voltage reduction and galvanic isolation from the noisy mains power. Its sheer mass and magnetic properties act as a natural low-pass filter.
2. Rectification and Filtering: A bridge rectifier converts the AC into pulsing DC, which is then smoothed by a bank of large filter capacitors. These capacitors act as a reservoir, storing energy to deliver instantaneous current for demanding musical passages, ensuring dynamics are not compromised.
3. Regulation: The final stage uses a linear regulator circuit to clamp the voltage to a rock-steady, precise output, stripping away any remaining ripple. High-end designs often use ultra-low-noise discrete regulators or specialized chips like the LT3045, which can achieve noise levels measured in microvolts.



The Tangible Difference: What You'll Actually Hear

Moving from technical specifications to the listening chair, the improvements are often not subtle. Audiophiles who upgrade to an LPS frequently report a profound transformation. As one reviewer for Audio Bacon described the experience with a Plixir Elite LPS, "Once I hooked up the Plixir Elite BDC, I couldn’t help but say 'WOW.'... It’s alive and raw yet encompasses impressive tonal balance with minute effortlessness."

Commonly reported sonic benefits include:

• A Deeper Soundstage: With the veil of noise lifted, the space between instruments becomes clear. The soundstage gains depth and width, creating a more holographic, three-dimensional presentation.
• Enhanced Detail and Texture: Micro-details previously buried in the noise floor emerge. You can hear the texture of a cello bow on the strings or the subtle nuances of a singer's phrasing.
• Tighter, More Articulate Bass: The ability to deliver current on demand results in bass that is not just deeper, but faster, more controlled, and more tuneful.
• Smoother, More Natural Highs: The reduction in jitter and high-frequency noise eliminates digital harshness, leading to a treble that is extended and airy without being fatiguing.

The Great Debate: Is an LPS Always the Answer?

While the benefits are compelling, the audiophile world is rarely black and white. The move to an LPS is not a universal panacea, and the context of your system is crucial.

The Case for High-End SMPS

It's important to state that not all switching power supplies are created equal. Some manufacturers, like Chord Electronics, have invested heavily in developing highly sophisticated, well-filtered SMPS designs. They argue that a properly engineered SMPS can outperform a generic LPS, especially in terms of transient response. As discussed in forums like the Naim Audio Community, a well-designed SMPS from a reputable brand can be very quiet, and it may take a very expensive, high-end LPS to offer a clear improvement.

When is an LPS a "Must-Have"?

The consensus is that the benefits of a linear power supply are most profound on low-power, high-sensitivity source components. These are the devices where the audio signal is at its most fragile and susceptible to noise. The prime candidates for an LPS upgrade are:

• Digital-to-Analog Converters (DACs): Especially R2R ladder DACs, which are notoriously sensitive to power supply stability.
• Phono Preamplifiers: These amplify a minuscule signal from a turntable cartridge, meaning any noise in the power supply is also amplified significantly.
• Network Streamers and Servers: These digital devices are prone to generating their own internal noise, and a clean power supply can help isolate them from the rest of the system.
• Headphone Amplifiers: Particularly when driving high-sensitivity headphones, a low noise floor is critical for a clean, immersive experience.

For power amplifiers, the story is different. Most high-quality power amps already incorporate massive, unregulated linear power supplies internally to handle their high current demands. As noted in a Texas Instruments application note, an unregulated supply is the most common and practical choice for audio power amplifiers.

Conclusion: Powering Your Passion

In the relentless pursuit of audio perfection, it’s easy to get caught up in chasing the latest DAC chip or the most exotic speaker cable. But often, the most significant upgrade is the one we overlook—the very foundation of power that our system is built upon. A linear power supply is not a glamorous accessory; it is a fundamental component that allows your meticulously chosen equipment to perform at its absolute best.

It may not be a magic bullet for every system, but for the dedicated audiophile seeking to remove that final veil between them and the music, it can be a revelation. Before you consider your next major component upgrade, ask yourself: have you given your system the clean, stable power it deserves? The answer might just be the silent hero waiting to unlock a new level of sonic purity.

Reference

[1]

Linear Power Supply vs SMPS - Hi-Fi Corner - Naim Audio

https://community.naimaudio.com/t/linear-power-supply-vs-smps/30897

[2]

2025 Audio Power Supply Guide: Switching or Linear? (With Real …

https://yhypower.com/info-detail/2025-audio-power-supply-guide-switching-or-linear-with-real-test-charts-comparisons-198

[3]

Linear Power Supply Design - sound-au.com

https://sound-au.com/power-supplies.htm

[4]

Linear Power Supply | Tektronix

https://www.tek.com.cn/products/dc-power-supplies/linear-power-supply

[5]

AN-1849 An Audio Amplifier Power Supply Design (Rev. C)

https://www.ti.com/lit/an/snaa057c/snaa057c.pdf

[6]

The World’s Best Audiophile Linear Power Supplies …

https://www.audiokafe.com/en/review/the-worlds-best-audiophile-linear-power-supplies-won-finest-cut-by-audiobacon/

 A Comprehensive Guide to Microphones: Dynamic, Condenser, and Ribbon

Published By IWISTAO

Understanding the pros and cons to find the perfect mic for your needs.

When it comes to capturing sound, microphones are categorized into three main types: dynamic, condenser, and ribbon. Choosing the right microphone isn't about picking the most expensive one; it's about finding the most suitable tool for the job. The best choice depends on the recording environment and your specific needs. Let's explore the unique characteristics, advantages, and disadvantages of each type.

Dynamic Microphones

Dynamic microphones are the workhorses of the audio world, known for their durability and versatility, especially in live sound reinforcement.

Advantages:

• Low Sensitivity: While this means they capture fewer fine details than condenser mics, it's a significant advantage on a noisy stage. They are less likely to pick up ambient noise, reducing the risk of feedback and screeching.
• High SPL Handling: Dynamic mics can withstand very high sound pressure levels (SPL) without distorting or "clipping." This makes them ideal for close-miking loud sources like snare drums, where a powerful hit from a skilled drummer would easily overload a more sensitive microphone.
• Durability: These microphones are built to last. An accidental drop on the floor is often no cause for alarm; you can usually pick it up and continue using it without issue.
• Focused Frequency Response: Although their frequency response isn't as wide or flat as a condenser's, it's perfectly adequate for many instruments like guitars and basses, which don't occupy the full frequency spectrum. This focused pickup also helps isolate the sound source, minimizing bleed from other instruments and simplifying the mixing process for the sound engineer.

Disadvantages:

• Lower sensitivity means less detail in the recording.
• Frequency response is not as broad or flat as other types.

Condenser Microphones

Condenser microphones are the go-to choice for studio recording, prized for their ability to capture sound with exceptional clarity and detail.

Advantages:

• High Sensitivity & Detail: The defining feature of a condenser mic is its high sensitivity, allowing it to capture rich, nuanced details and subtle sonic textures.
• Wide, Flat Frequency Response: They typically offer a very wide and flat frequency response, resulting in a faithful and accurate reproduction of the original sound source. This makes them shine in controlled, quiet acoustic environments like a recording studio.

Disadvantages:

• Sensitive to Environment: Their high sensitivity is a double-edged sword. In an average room, they will easily pick up unwanted ambient noise, such as conversations in the next room or traffic outside. Removing this noise in post-production is difficult and can degrade the audio quality.
• Fragility: Condenser mics are delicate instruments. They must be handled with care and protected from physical shock.
• Susceptibility to Humidity: Moisture can negatively affect a condenser microphone's performance and sound quality. It's best practice to store them in a case with desiccant packs when not in use. High-end recording studios often invest in specialized temperature- and humidity-controlled cabinets to protect these valuable tools.

Ribbon Microphones

Ribbon microphones are even more delicate than condensers but are beloved by many recording engineers for their unique sonic character.

Characteristics:

Ribbon mics occupy a space between dynamic and condenser microphones in terms of performance. Their sensitivity is generally higher than a dynamic mic but lower than a condenser. Similarly, their frequency response is better than a dynamic but not as wide as a condenser.

Advantages:

• Warm, Vintage Tone: The "one trick" that makes ribbon mics indispensable is their characteristically warm, smooth, and often described as "vintage" sound. This unique tonality is highly sought after for certain applications.
• Fast Transient Response: They are known for their ability to accurately capture the initial attack of a sound, contributing to a natural and realistic recording.

Challenges and Modern Advancements:

Traditionally, ribbon mics are notoriously fragile and difficult to work with. However, technology is constantly evolving. Manufacturers are actively improving their design to overcome these limitations. For example:

• The Blue Woodpecker is an active ribbon mic that can be powered by 48V phantom power, which also helps extend its high-frequency response and increase its output signal. This design eliminates the classic fear of accidentally destroying the ribbon element with phantom power.
• Beyerdynamic has developed ribbon microphone capsules like the RM510 that are robust enough to be used in complex live performance environments.

Thanks to these innovations, the applications for ribbon microphones are becoming increasingly widespread.

Conclusion: Which Microphone is Best for You?

There is no single "best" microphone—only the most suitable one for your specific situation. The key is to match the microphone's strengths to your recording needs and environment.

• Choose a Dynamic Microphone for loud sound sources and live performances where durability and feedback rejection are paramount.
• Choose a Condenser Microphone for detailed studio recording in a quiet, controlled environment where capturing every nuance is the goal.
• Choose a Ribbon Microphone when you desire a specific warm, vintage character and a natural sound, especially for vocals and certain instruments in a studio setting.

By understanding the fundamental differences between these three types, you can make an informed decision and select the microphone that will best help you achieve your desired sound.

 A Complete Guide to Common Audio Cables: From Studio Essentials to Hi‑Fi Applications

Published By IWISTAO

Cables are the silent heroes of every audio system. Whether you are recording, mixing, or enjoying high‑fidelity playback, understanding how each type of cable works is crucial for preserving signal integrity and achieving professional sound quality. This guide explores ten of the most common audio cables used in recording studios, live performance setups, and home Hi‑Fi systems—explaining their origins, functions, and best‑practice applications.



---

1. ADAT — Professional Digital Optical Transmission

ADAT (Alesis Digital Audio Tape) was developed by Alesis as a digital optical format for multi‑channel audio transmission. It allows multiple audio devices to communicate through light‑based signals, ensuring zero noise and sample‑accurate synchronization.

For example, an 8‑channel audio interface with an ADAT port can connect to another 8‑channel preamp, expanding to 16 channels without sacrificing audio quality.

Key Features:

• Digital optical transmission, immune to interference

• Supports up to 8 channels per optical link

• Used in professional recording interfaces and rackmount gear



---

2. FireWire (IEEE 1394) — The Legacy Connection

Once the king of digital audio interfaces, FireWire was developed by Apple to provide fast data transfer between computers and peripherals. Before USB 3.0 became universal, FireWire was the preferred choice for professional audio devices thanks to its stable bandwidth and low latency.

However, Apple officially discontinued FireWire development in 2008, and most modern interfaces have since transitioned to USB or Thunderbolt connections.

Use Today: Still found on some legacy studio equipment and early digital mixers.

---

3. USB — The Universal Standard

USB (Universal Serial Bus) is now the most widely used interface for connecting audio devices. From entry‑level audio interfaces to professional MIDI controllers, USB provides plug‑and‑play functionality and reliable power delivery.

The USB Type‑B connector—often shaped like a small square or house—is common on audio interfaces, DACs, and MIDI keyboards.



Key Advantages:

• Simple, driver‑free setup

• Supports both audio and power transmission

• Compatible with all major operating systems

Pro Tip: USB 3.0 and USB‑C cables offer faster transfer speeds and lower latency—ideal for modern high‑resolution audio production.



---

4. S/PDIF — High‑Fidelity Digital Audio

S/PDIF (Sony/Philips Digital Interface Format) is a consumer‑grade digital audio connection using either optical (TOSLINK) or coaxial cables. It allows the transfer of two channels of uncompressed digital audio between devices without any loss in quality.

You’ll often find S/PDIF on CD players, DACs, and AV receivers, as it supports formats like Dolby Digital and DTS.



Benefits:

• Preserves digital integrity with no analog conversion

• Supports up to 24‑bit/96 kHz resolution

• Ideal for connecting CD transports, DACs, or home theater systems



---

5. XLR (Cannon Connector) — The Professional Studio Standard

The XLR connector—commonly known as a Cannon plug—is the gold standard for professional microphones and studio gear. It carries a balanced signal, meaning two wires transmit the same audio with opposite polarity, canceling out interference and ensuring clean, noise‑free audio.

Applications:

• Microphones (especially condenser types requiring phantom power)

• Balanced line‑level outputs on mixers and preamps

• Professional speakers and active monitors

Advantages: Secure locking mechanism, long cable runs without signal loss, and superior noise rejection.



---

6. TS (6.3 mm Mono) — Instrument Cable

The TS (Tip‑Sleeve) connector, also known as a 1/4‑inch mono jack, is widely used for instruments such as electric guitars, basses, and keyboards. It carries an unbalanced signal, meaning it’s more susceptible to noise over long distances.



Best Practices:

• Keep cable lengths under 6 meters (20 feet) to avoid interference

• Use shielded cables for live performance setups

• Ideal for guitar pedals and amp connections



---

7. 3.5 mm (1/8‑inch) Stereo — The Everyday Audio Plug

The 3.5 mm stereo jack is the most common connector for consumer devices like smartphones, headphones, laptops, and desktop speakers. It carries a stereo (left/right) unbalanced signal.

You can easily identify it by the two black rings on the plug’s tip—mono jacks only have one.



Applications:

• Headphones, earbuds, portable players

• PC microphones, desktop sound systems

• Auxiliary (AUX) input/output connections

Note: While convenient, the 3.5 mm cable’s small contact surface makes it prone to wear and static noise with frequent use.



---

8. TRS (6.3 mm Stereo) — Balanced or Stereo Connection

The TRS (Tip‑Ring‑Sleeve) connector looks identical to a TS jack but has an extra contact ring that allows for stereo or balanced signal transmission.



Typical Uses:

• Professional headphones and monitor outputs

• Balanced patch cables in studios

• Mixer insert cables and synthesizer outputs

Pro Tip: When used for balanced connections, TRS provides noise immunity similar to XLR but in a smaller, more versatile form.



---

9. RCA (Phono Connector) — The Home Audio Classic

The RCA connector, also called a phono plug or red‑white cable, has been the standard in consumer audio systems for decades. It’s typically used for analog stereo signals, though it can also carry digital (S/PDIF coaxial) data.

Applications:

• CD players, turntables, and amplifiers

• Home theater and Hi‑Fi systems

• Subwoofer connections

Strengths: Affordable and easy to use.
Limitations: Unbalanced, so keep cables short to avoid hum and interference.



---

10. MIDI — The Language of Digital Music

MIDI (Musical Instrument Digital Interface), introduced in 1983, revolutionized electronic music by allowing instruments and computers to communicate. MIDI cables don’t carry audio—they transmit performance data, such as key presses, velocity, pitch bends, and pedal actions.



Modern Use:

• Connecting keyboards, synthesizers, drum machines, and computers

• Integrating digital audio workstations (DAWs) with external gear

• Controlling lighting and stage automation systems

Insight: USB‑MIDI and Bluetooth‑MIDI have become popular for portable, latency‑free performance setups.



---

Final Thoughts

Cables may not produce sound themselves, but they define how faithfully that sound travels from source to destination. From ADAT’s optical precision to XLR’s professional balance, each connection type plays a vital role in shaping audio quality.

For audiophiles and sound engineers alike, knowing your cables isn’t just about compatibility—it’s about ensuring your system performs at its best, every time.

Understanding the Differences Between Speaker Cable, Audio Cable, and Microphone Cable

Published by IWISTAO

When building or upgrading an audio system, choosing the right cables is just as important as selecting the right speakers or amplifier. Each cable type—speaker cable, audio cable, and microphone cable—serves a distinct purpose and is designed with different electrical and structural characteristics. Understanding their differences helps ensure clear, distortion-free, and reliable sound reproduction.

---

Speaker Cable: Power Transmission for Amplifiers and Speakers

Speaker cables—also known as loudspeaker wire, gold-silver wire (flat cable), or EVJV wire (round cable)—are primarily used to connect amplifiers to speakers. Because they transmit high-power signals, they must offer low resistance and excellent conductivity to minimize signal loss.

Commonly made from oxygen-free copper (OFC), silver-plated, or gold-plated materials, speaker cables provide outstanding electrical performance. Unlike signal cables, they often lack shielding, since the strong power signal is less susceptible to interference.

Specifications

Speaker cables are typically double-core, with common specifications including:

• Gold-silver wire: 100-core, 200-core, and 300-core (e.g., single-core 200 or double-core 100×2).

• EVJV wire: 2×1.5mm², 2×2.0mm², 2×2.5mm², or multi-core 4×1.5mm², 4×2.0mm², 4×2.5mm².
  More copper strands improve conductivity but increase cost. For home audio, 200–300 strands are usually sufficient.

Because speaker cables handle large current flow, they prioritize low impedance rather than shielding. This makes them ideal for long-distance transmission in home theaters, PA systems, and large venues.

Structure

Speaker cables have positive and negative poles, often color-coded (e.g., red = positive, white/black = negative) or marked along the insulation. They usually have bare wire ends and connect by binding posts, clamps, or screw terminals, rather than pre-molded plugs.



Applications

Speaker cables are essential for connecting amplifiers, receivers, and speakers in:

• Home theater setups

• Public address (PA) systems

• KTV or meeting rooms

• Cinemas and stage installations

Their role is to deliver high-power energy from the amplifier to the speaker drivers, ensuring dynamic and full-bodied sound.

Advantages

• Low resistance, high current capacity: Enables efficient power transfer for powerful sound output.

• Excellent distance performance: Reduces signal attenuation even over longer runs.

• Simple and durable design: The lack of shielding minimizes mechanical failures and simplifies hidden installation.

• High current tolerance: Built to handle large electrical loads without overheating or distortion.





---

Audio Cable: Carrying Low-Power Signal with Precision

Audio cables are designed to transmit low-power, small-current signals between audio devices. Typically composed of conductors, insulation, and outer shielding, they are optimized for signal fidelity and interference resistance, rather than current capacity.

They connect devices like smartphones, televisions, CD players, MP3 players, headphones, and amplifiers. Common connectors include 3.5 mm plugs, RCA connectors, and XLR connectors—each chosen based on the device and signal type.

Specifications

Audio cables come in many configurations:

• Electrical or optical signal types (optical for digital, electrical for analog).

• Wire thickness: 0.1 mm², 0.15 mm², 0.3 mm².

• Shielding density: 96, 112, or 128 mesh—woven or foil-wrapped.

• Common examples: 3.5 mm male-to-male, male-to-female extension cables, or dual-RCA stereo cables.

Because they transmit delicate voltage-level signals, proper shielding is crucial to minimize electromagnetic interference (EMI). Typical transmission distances are within 50 meters, beyond which signal degradation may occur.

Structure

Audio cables are often pre-terminated with RCA, XLR, or banana plugs. The inner conductor carries the signal, while the shielding serves as the ground and protection against noise. Balanced audio lines (like XLR) use two conductors plus shielding for better noise rejection, while unbalanced lines (like RCA or 3.5 mm) use a single conductor and shield.

Applications

Audio cables are used to interconnect:

• Music source devices (smartphones, TVs, CD players) to amplifiers

• Audio interfaces, mixers, or DACs

• Headphones, speakers, and recording devices

They are ideal for short-distance, low-power transmission, ensuring clear and detailed audio reproduction.



---

Microphone Cable: Designed for Clarity and Noise Resistance

Microphone cables (or mic cables) connect microphones to amplifiers, mixers, or recording interfaces. They belong to the category of low-voltage control cables, responsible for carrying extremely weak signals—often around 1 mV—without distortion.

These cables must reject interference, especially in environments with lighting, wireless, or AC power sources nearby. High-quality microphone cables achieve this through careful shielding and balanced wiring.

Specifications

The most common type is the RVVP PVC-insulated soft cable, available in 2-core or 3-core versions.

• Diameter marking: e.g., Φ6.0 mm (overall thickness)

• Core composition: multiple fine copper strands, such as (28/0.12 mm)×2C, meaning 28 strands of 0.12 mm copper per conductor.

Balanced vs. Unbalanced

• Balanced cables (e.g., XLR connectors): Use twisted-pair differential transmission to cancel noise, ideal for long distances (up to several hundred meters).

• Unbalanced cables (e.g., TS connectors): Use single-core plus shield, best for short distances (5–10 m) like home or casual setups.

Structure

Microphone cables combine:

• High-purity copper conductors

• One or more shielding layers (braided or foil)

• Durable connectors (XLR, TRS, TS)

• Strain-relief and reinforcement layers for stage or studio durability

Applications

• Professional environments: Stage performances, live sound, recording studios, broadcasting, and engineering installations.

• Consumer use: Simple recording, podcasting, or karaoke setups using shorter, unbalanced cables.



---

Key Takeaways: Choosing the Right Cable

Cable Type	Signal Type	Shielding	Typical Use	Transmission Distance
Speaker Cable	High-power electrical	None	Amplifier ↔ Speaker	Long (up to tens of meters)
Audio Cable	Low-power signal	Yes	Device ↔ Amplifier / Headphones	≤ 50 m
Microphone Cable	Very low-power signal	Yes (essential)	Mic ↔ Mixer / Interface	Up to several hundred meters (balanced)

---

Conclusion

Choosing the right cable is more than a technicality—it’s the foundation of any high-fidelity audio setup.

• Use speaker cables for delivering amplifier power efficiently to your speakers.

• Choose audio cables for inter-device signal transmission where clarity and shielding matter most.

• Opt for microphone cables when handling low-level, high-sensitivity signals that demand strong noise rejection.

Whether you’re setting up a home theater, studio, or professional PA system, selecting the correct cable ensures your system delivers clean, dynamic, and distortion-free sound every time.



 Resonance Characteristics Analysis and Formula Derivation in Loudspeaker Design

Published by IWISTAO

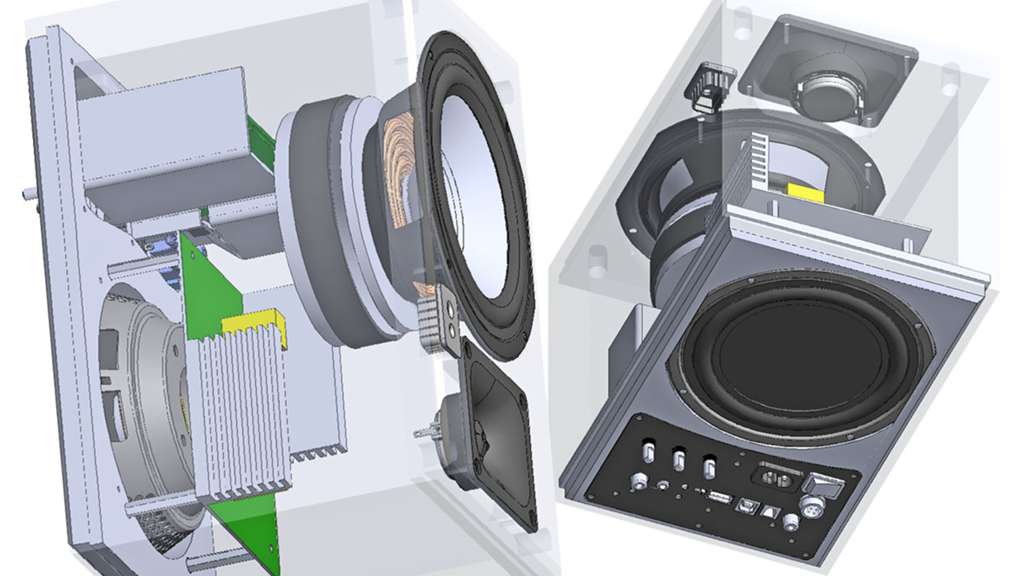

In loudspeaker design, the system composed of the speaker driver and the enclosure exhibits specific resonance characteristics. These resonance properties directly affect the low-frequency response and overall sound quality of the loudspeaker.

This article explores the resonance behavior of sealed and bass-reflex (ported) enclosures and provides detailed calculation formulas and derivations.



1. Basic Parameters of the Speaker Driver

The performance of a loudspeaker driver is usually characterized by several key parameters:

• Fs — Free-air resonance frequency: the natural resonant frequency of the driver when vibrating in free air.

• Vas — Equivalent compliance volume: the volume of air that has the same compliance as the driver’s suspension system.

• Qts — Total quality factor: represents the damping characteristics of the driver, combining the mechanical quality factor (Qms) and electrical quality factor (Qes) in parallel:

where:

and:

• Mm — moving mass (including diaphragm and voice coil)

• Rm — mechanical resistance

• Re — DC resistance of the voice coil

• Bl — product of magnetic flux density (B) and voice coil length (l)



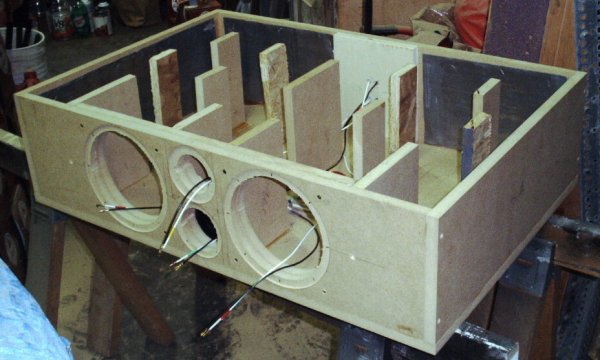

2. Resonance Frequency of Sealed Enclosures

In a sealed-box loudspeaker, the driver is mounted in a completely airtight cabinet.

The air inside the box provides an additional stiffness that, together with the driver’s suspension, forms a new resonant system.

The system’s resonance frequency (fc) can be expressed as:

where:

• fc — resonance frequency of the sealed enclosure

• fs — free-air resonance frequency of the driver

• Vas — equivalent compliance volume of the driver

• Vb — effective internal volume of the enclosure



It can be observed that a smaller box volume raises the resonance frequency, degrading low-frequency performance,

while a larger box brings fc closer to fs, improving bass extension.

However, overly large enclosures may reduce driving force and cause poor low-frequency control.

• As V_b increases, f_c drops toward f_s (here from 86.6 Hz → 61.2 Hz), giving deeper bass—exactly as predicted by the formula and design intuition.



3. Resonance Frequency and Port Design in Bass-Reflex Enclosures

A bass-reflex (ported) loudspeaker introduces a vent (or port) in the enclosure, forming a Helmholtz resonator with the air inside.

This structure enhances bass efficiency and extends low-frequency response.

The enclosure’s resonance frequency (fb) is given by the Helmholtz resonance formula:

where:

• fb — resonance frequency of the ported enclosure

• c — speed of sound (≈ 343 m/s at room temperature)

• S — cross-sectional area of the port (m²)

• Lport — effective length of the port (m)

• Vb — internal volume of the enclosure (m³)



For optimal performance, fb is typically set slightly below the overall system resonance frequency determined by the driver and box.

A practical alignment based on Thiele–Small parameters can be obtained using the empirical relationship:

During real-world tuning, adjusting the port length (Lport) or area (S) allows precise control over fb.



4. Port Air Velocity and Distortion Control

To avoid air turbulence and chuffing noise, the maximum air velocity in the port should be limited according to:

where:

• vport — maximum air velocity inside the port (m/s, typically < 17 m/s)

• Xmax — maximum linear excursion of the driver (m)

• Sd — effective diaphragm area of the driver (m²)

• f — frequency corresponding to maximum excursion (Hz)

• S — port cross-sectional area (m²)

By increasing the port area or adjusting its length, designers can reduce air velocity and distortion, improving bass clarity.



5. Summary and Design Recommendations

From the above derivations:

• Sealed Enclosures — Larger volume yields deeper bass and lower resonance frequency, but requires more space.

• Bass-Reflex Enclosures — Offer better low-frequency extension in smaller boxes through port tuning, but require careful optimization of port dimensions and damping.

In practice, designers must balance driver parameters, box volume, and port geometry to achieve an optimal resonance frequency and smooth, accurate bass response.
