The 833 Tube Amplifier: From Radio Transmitter to Audiophile Legend
Table of Contents
- Introduction: The "Godzilla" of Audio Tubes
- A Glimpse into History: The 833's Origins
- The Leap to High-Fidelity: Why Use a Transmitter Tube for Audio?
- The Sound: Power, Purity, and Presence
- The Challenge of the Beast: Building and Owning an 833 Amp
- The Pinnacle of High-End: Commercial Masterpieces
- Conclusion: An Enduring Legacy in Sound
Introduction: The "Godzilla" of Audio Tubes
In the world of high-fidelity audio, certain components achieve a mythical status. The 833 transmitting tube, also known by its Chinese designation FU-33, is one such legend. Physically imposing—often compared to a "Mason jar" or a "quart-sized" bottle—the 833 was never intended for home audio. Yet, for a dedicated group of audiophiles and DIY enthusiasts, this high-power triode represents an audacious frontier in the quest for sonic perfection. Its journey from the heart of radio transmitters to the core of esoteric audio amplifiers is a story of ambition, engineering prowess, and a healthy disregard for convention.
A Glimpse into History: The 833's Origins
The 833's story begins in 1937, when RCA developed it as a powerful and robust transmitting triode. Its primary role was in RF (radio frequency) amplifiers, oscillators, and Class B modulators for commercial AM broadcast transmitters and amateur radio setups. Built with a rugged hard-glass envelope and a thoriated-tungsten filament, it was designed for reliability and high power.
Its specifications are formidable even by today's standards. The 833A variant can dissipate 450 watts of power through natural air cooling alone, a figure that dwarfs typical audio tubes. With forced-air cooling, its plate can handle up to 2.0 kilowatts of input power at a staggering 4,000 volts DC. According to its datasheet, the tube was designed to operate at frequencies as high as 30 MHz, making it a workhorse of the airwaves for decades.
The Leap to High-Fidelity: Why Use a Transmitter Tube for Audio?
The idea of using a massive transmitting tube for audio might seem like overkill. For years, the darlings of the Single-Ended Triode (SET) amplifier world have been tubes like the 300B, 2A3, and 45. These are celebrated for their "spectacularly musical" midrange and treble but are often criticized for their limited power output—typically just a few watts—which struggles to reproduce deep, authoritative bass frequencies without highly efficient speakers. As one DIY builder noted, these smaller tubes, despite their beauty, lack the power for the full weight of an orchestra.
The 833 offers a radical solution. By employing a tube designed for immense power, an amplifier can be built that retains the desirable single-ended, Class-A topology while delivering enough current to control demanding speakers and produce profound bass. The theory is that by operating the 833 far below its maximum power limits, it can perform with exceptional linearity. This combination of raw power and potential for finesse is what makes the 833 so alluring to designers aiming to build the "big one."
The Sound: Power, Purity, and Presence
Listeners often describe the sound of a well-designed 833 amplifier in superlative terms. The experience transcends mere technical specifications. Reviews speak of a sound that combines the raw power of solid-state giants with the delicate transparency of the finest tube amps. One listener, upon hearing an 833-based amplifier for the first time, exclaimed, "This has to be the most powerfull amp that I have ever heard bar none."
Beyond sheer power, these amplifiers are praised for creating an immense, holographic soundstage and delivering midrange with startling purity and realism. A review of the legendary Wavac SH-833 noted its ability to deliver the "effervescence, transparency, and solidity of live music." While some acknowledge it may be slightly warm in the bass and mellow on top, the overall presentation is one of seamless coherence and emotional engagement that few other designs can match.
Slightly on the mellow side up top, a bit warm down below, the Wavac SH-833 seamlessly filled in the midband with a rich, transparent, detailed sound that managed to unite the entire audible bandwidth into a whole that was coherent, transparent, rich, and round. — Stereophile Magazine

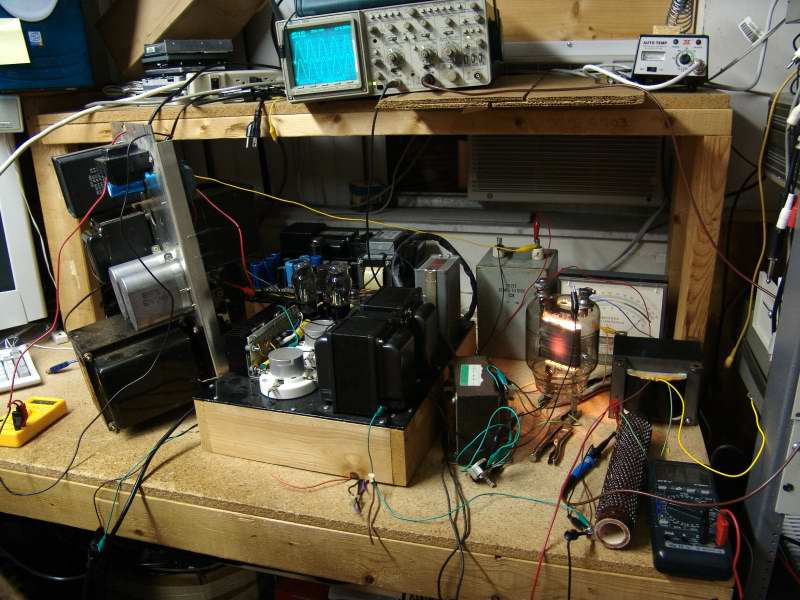

The Challenge of the Beast: Building and Owning an 833 Amp
The path to 833 amplification is fraught with peril and complexity. This is not a project for the faint of heart or the inexperienced builder. The challenges are as monumental as the tube itself, spanning extreme safety risks, complex power supply designs, and unique electrical hurdles.
Extreme Voltages and Safety
The foremost concern is safety. 833 amplifiers operate with plate voltages that are unequivocally lethal, typically ranging from 1,000 to 3,000 volts. The capacitor banks in the power supply store enough energy to be deadly long after the power is disconnected. DIY guides are filled with stark warnings: "Please do not attempt to build one of these unless you have a reasonably good idea of what you are doing." Proper caging of high-voltage circuits, well-insulated wiring, and a deep respect for the electricity involved are non-negotiable prerequisites.
The Power Supply Conundrum
Designing a power supply for an 833 amp is a monumental task. It must not only provide stable, high-voltage DC but also deliver immense current on demand, especially for low-frequency notes. As documented in one extensive test, a power supply designed for a radio transmitter proved inadequate for audio, struggling to deliver power at frequencies below 50 Hz and causing breakers to trip. A robust, well-filtered power supply with large capacitors is essential for achieving the deep bass the 833 is capable of.
Taming the Filament Hum
The 833A';s filament is another significant challenge. It requires a massive 10 volts at 10 amperes. Powering this with AC is often a non-starter, as the powerful magnetic field generated by the filament can induce a persistent hum into the sensitive audio circuits. The consensus among builders is that a heavily filtered, high-current DC power supply is mandatory. This adds another layer of complexity and cost to the project, requiring rectifiers and large filter capacitors rated to handle the substantial current.
The Pinnacle of High-End: Commercial Masterpieces

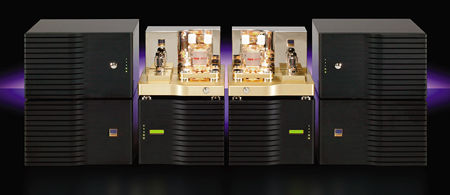

While the 833 is a favorite of ambitious DIYers, it has also been the centerpiece of some of the most extravagant commercial amplifiers ever made. The most famous is undoubtedly the Wavac SH-833. Developed by the late Japanese audio guru Nobu Shishido, these monoblock amplifiers were a statement product with a staggering price tag of $350,000 per pair upon their release.
The SH-833 claimed an output of 150 watts in pure Class-A, an extraordinary figure for a SET amplifier. It utilized a unique Inverted Interstage Transformer Coupling (IITC) circuit to drive the massive 833 tube, a design choice intended to deliver ";clear and full bass sound." The Wavac amplifiers are a testament to what is possible when cost is no object, representing the absolute zenith of 833-based audio design.
Conclusion: An Enduring Legacy in Sound
The 833 tube amplifier is not for everyone. It is an outlier, an extremist's choice in a hobby that already has its share of esoteric pursuits. It demands a rare combination of technical expertise, unwavering attention to safety, and a significant financial and spatial investment. Yet, for those who successfully tame this beast, the rewards are said to be unparalleled.
The 833 represents more than just a component; it embodies a philosophy—a relentless pursuit of sonic authority and realism, pushing the boundaries of what vacuum tube technology can achieve. Whether in a meticulously crafted DIY project or a cost-no-object commercial masterpiece, the 833 amplifier stands as a powerful, glowing monument to the enduring magic of high-fidelity audio.
